Chart templates

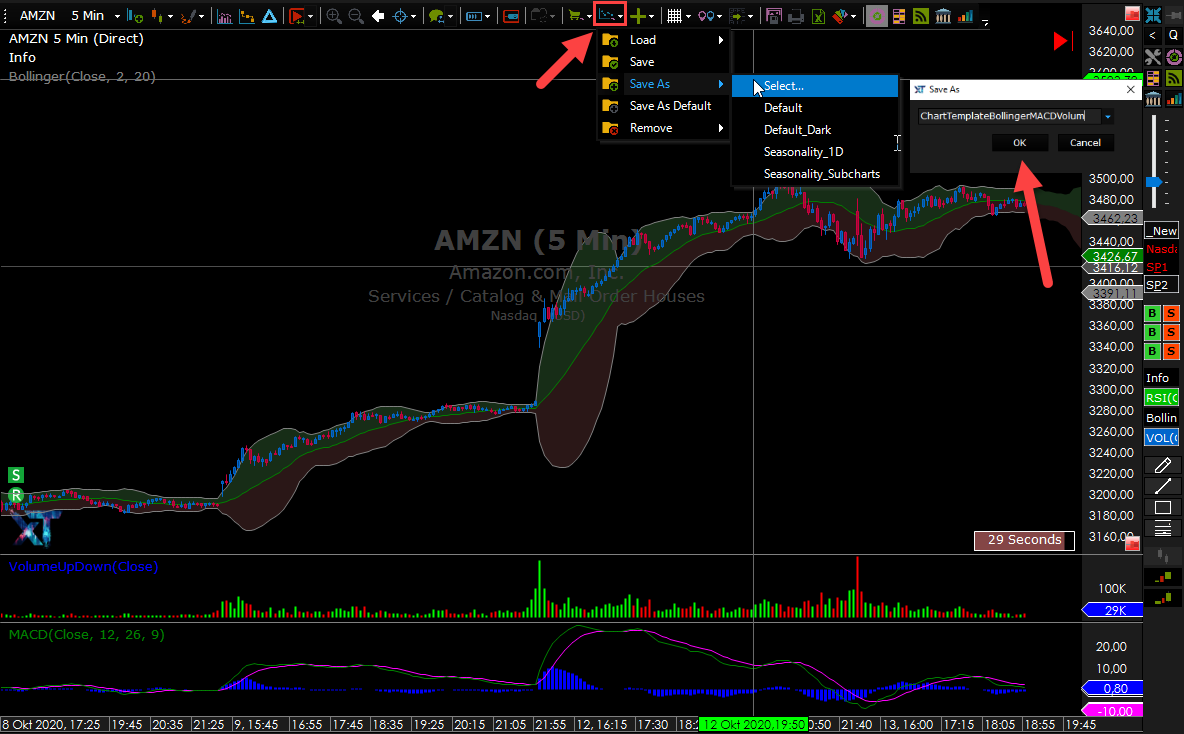

TradersYard X allows you to save the chart parameters with the help of chart templates and then apply them to other charts by loading the template.
When you save a chart template, the following chart settings are determined:
Icon
Feature
Save template
-
Blue Checkmark Ms
Time Bar
Bar timer
Blue Checkmark Ms
Icon19
Color
Blue Checkmark Ms
Icon21
DOM
-
Icon4
Drawings
-
Icon15
Grid
Blue Checkmark Ms
Icon5
Indicators
Blue Checkmark Ms
Es
Instrument
-
Location Point
Location Point
-
Multidata Icon
Multidata
-
Icon9
Pointer
Blue Checkmark Ms
Icon3
Price Style
Blue Checkmark Ms
Public Mode
Public Mode
-
Quicktrader Button
Quick Trader
-
Icon16
Quote markers line
Blue Checkmark Ms
Back History
Show all history
-
Icon7
Start TX++
-
Icon6
Strategies
-
Icon10
Switch to pre/post-market data
-
Icon2
TimeFrame
-
Icon17
Trade Visualization
Blue Checkmark Ms
Icon20
Trading Pad
-
Icon8
Zoom In/Out
Blue Checkmark Ms
Since drawing tools are instrument-specific, they are not included in templates.
In order to open a list of saved chart templates use one of the options:
  1. 1.
    Left-click on the
    Icon13
    icon within the chart toolbar.
  2. 2.
    Right-click in the charting area to bring up the chart context menu, then select Settings followed by the Chart Templates menu item.
Template

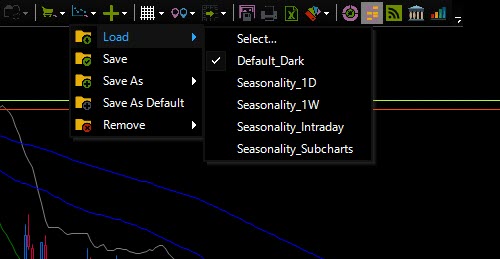

To load a saved template, right-click on the chart and select Settings -> Chart Templates -> Load from the context menu.
Once you click on Select, the following popup window will appear. Within this window, you can choose the desired chart template from the drop-down list.

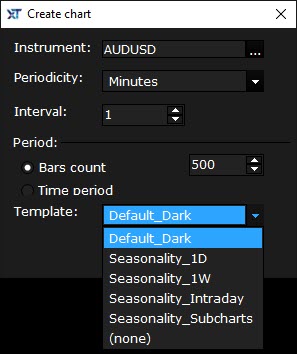

Chart templates can also be directly selected when creating a new chart:
